Model |
Voltage VAC
|
Freq. Hz
|
Current A
|
Power W
|
Speed rpm
|
Pressure mmAq
|
Air Flow CFM
|
Noise dB
|
|
|
Super Speed |
|
|
|
|
|
|
|
|
|
|
* A12025-V1UBxP |
115 |
50 / 60 |
0.18/ / 0.14 |
14.0 / 11.0 |
2400 / 2700 |
4.7 / 4.7 |
62 / 75 |
38 / 42 |
|
|
* A12025-V2UBxP |
220 |
50 / 60 |
0.08 / 0.07 |
13.0 / 11.0 |
2400 / 2700 |
4.7 / 4.9 |
62 / 75 |
38 / 42 |
|
|
|
|
|
|
|
|
|
|
|
|
|
High Speed |
|
|
|
|
|
|
|
|
|
|
A12025-V1HBxP |
115 |
50 / 60 |
0.18 / 0.14 |
15.0 / 13.0 |
2200 / 2400 |
3.6 / 4.0 |
66 / 78 |
38 / 40 |
|
|
A12025-V2HBxP |
220 |
50 / 60 |
0.09 / 0.07 |
17.0 / 14.0 |
2200 / 2400 |
3.6 / 4.0 |
66 / 78 |
38 / 40 |
|
|
A12025-V1HSxP |
115 |
50 / 60 |
0.18 / 0.14 |
15.0 / 13.0 |
2200 / 2400 |
3.6 / 4.0 |
66 / 78 |
38 / 40 |
|
|
A12025-V2HSxP |
220 |
50 / 60 |
0.09 / 0.07 |
17.0 / 14.0 |
2200 / 2400 |
3.6 / 4.0 |
66 / 78 |
38 / 40 |
|
x : T (Terminals) , L (Lead Wire)
多款風機有售，全新原裝正品，歡迎點擊?恒瑞宏晟

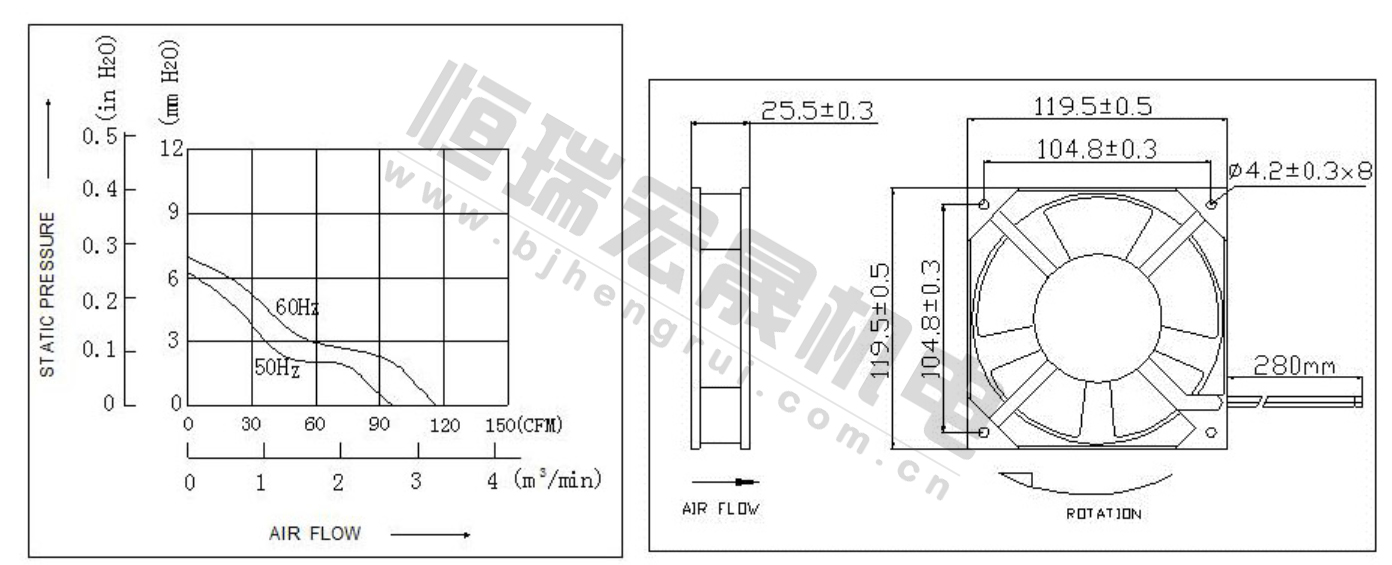

| SIZE | 120x120x25 |
| MATERIAL | Aluminum Housing, Plastic Impeller |
| BEARINGS | Maintenance-Free Ball Bearings |
| MOTOR TYPE | AC shaded-pole motor |
| CONNECTION | Terminals or Lead wire |
| DIELECTRIC STRENGTH | 1800 VAC for 1 Sec. |
| INSULATION RESISTANCE | 100 MΩ min.@500VDC |
| OPERATING TEMPERATURE | -30℃ to +75℃ (Ball Bearing) |
| -10℃ to +70℃ (Sleeve Bearing) | |
| TYPE OF PROTECTION | Insulation Class B |
| SAFETY | Impedance Protected |
| WEIGHT | |
| ROHS COMPLIANCE | Yes |
多款風機有售，全新原裝正品，歡迎點擊?恒瑞宏晟
通風，散熱，制冷。
